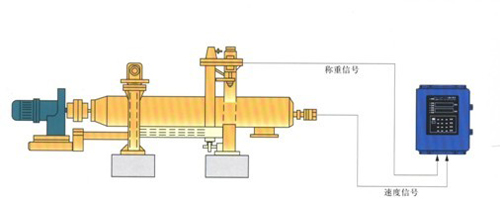

CXC -type weighing screw feeder, is all kinds of powder , bulk -like material continuous transmission , dynamic measurement , control, metering equipment for the production of materials . Widely used in cement, chemical, metallurgy , ceramics , food , transportation and other industries. As measured ingredients machine automation devices for on-site management , operation to provide accurate measurement data and control.
Features:Gravity weighing method with screw conveyor combination of dynamic continuous measurement ; compact , stable and reliable ; automatically measured calibration coefficient , automatic measuring system zero ; manually into a variety of parameters , run the operation can be manual / automatic switch ; with self- diagnostic instrument And computer networking.
Technical parameters: Static measurement error : ≤ 0.5%; dynamic accumulative error : ≤ 1%; control accuracy : better than 1% ; meter Power supply: Single phase 220V ± 10%, 50HZ; drag power : Three-phase 380V ± 10%, 50HZ; Use environment: Temperature : -10 ℃ ~ +40 ℃ Humidity : 5% ~ 90%
|
Screw diameter |
150 |
200 |
250 |
300 |
400 |
500 |
600 |
|
Coal type |
Maximum speed ( r / min ) |
190 |
150 |
150 |
120 |
120 |
90 |
90 |
|
Maximum transport capacity ( cubic meters / hour) |
9.7 |
18.1 |
35.4 |
49 |
115 |
170 |
292 |
|
Cement |
Maximum speed ( r / min ) |
90 |
75 |
75 |
60 |
60 |
45 |
45 |
|
Maximum transport capacity ( cubic meters / hour) |
3.5 |
6.7 |
13.3 |
18.3 |
43.5 |
63 |
110 |
