1 , uses

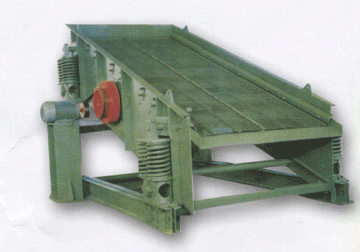

Mine is a single-axis shaker for circular movement of the vibrating screen, for black, non-ferrous and non-metallic mines operating in the secondary or independent screening for medium-grained classification purposes. The sieve has a simple structure , stable running , working and reliable.
Second , specifications and performance
1, this series consists of six specifications of 10 species;
2 , this series of mine the performance of single-axis shaker table ;
3 , the product model that is as follows ;

Third , the working principle and structure
Mining Department of the original single-axis shaker sieve box , vibrator , springs and other components. Screen box with a welded structure, solid and reliable , the main axis of the vibrator on the middle part of the system except the eccentric , the ends of the spindle has an adjustable eccentric weight eccentricity or shaft ends of the eccentric system is also re- installed Adjustable eccentric weight of the ellipse round . Vibrator motor through belt drive , drive shaft to a certain speed of rotation , so the quality of produce eccentric shaft and eccentric inertia force , the force , the screen box to approximate the circle movement , screens supporting box spring is used , but also reduce the A sieve in the running to pass the driving force base . Seat equipped with spring damping devices horizontal . Limit sieve sieve lateral resonance oscillation and reduce the amplitude .
