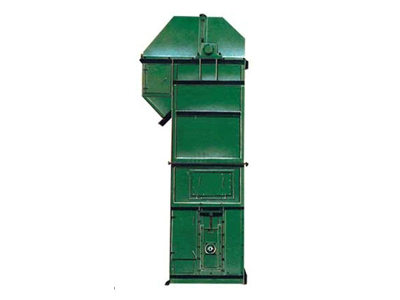

TH series of bucket elevator is the upgrading product of the HL-bucket elevator.Compared with HL type.TH type of elevator possesses the advantages of larger transmission capacity,higher degree,more stable and reliable operation and longer lift and so on.Main technical performance parameters meet the national standard.
The structure and feature of TH series of bucket elevator
(1)The capacity of the bucket closes to the actual volume of filling,plus the speed increases,the conveying capacity increases nearly coubled than that of the same bucket ofthe HL as follows.
(2)Top and bottom sprockets use assembly structure to facilitate the replacement flange and to low maintenance costs.
(3)The lower part uses tensioning device with a heavy hammer leveraged style that automatically maintain a constant tension,avoid slipping or falling off linked chain so that itis conducive to normal operation.
(4)Traction is linked to high-intensity ring .Affer heat treatment,it has a high tensile strength and wears resistance and therefore it keep a long life.
The model of material bucket and material-handling methods TH series of bucket elevator. The conveyor bucket comprises to bucket type ;ZH medium-deep bucket is generally applied for the distribution of wet,stick materials and materials that are so difficult to thrown out ,such as Green,sand,fertilizer,alkali powder,clay,etc,SH deep bucket is generally applied for distribution of dry ,loose materials and materials that are easily thrown out ,such as gravel,lump coal,cement raw materials,cement and slag,etc.
The conveyor bucket is for machine-loading mixed or gravity unloading .It is applied to transfer small pieces of powdery and low pondering type of materials of which packing density is less than 1.5t/m3 and humidity is not more than 250℃.The main technical parameters are shown in the following talble.
|
提升機型號Elevator Model |
TH315 |
TH400 |
TH500 |
TH630 |
|
料斗型號Bucket Model |
Zh |
Sh |
Zh |
Sh |
Zh |
Sh |
Zh |
Sh |
|
輸送量Conveying capacity |
m3/h |
35 |
59 |
58 |
94 |
73 |
118 |
114 |
185 |
|
料斗Hopper |
|
斗容Bucket capacity |
L |
3.75 |
6 |
5.9 |
9.5 |
9.3 |
15 |
14.6 |
23.6 |
|
斗距Bucket distance |
mm |
512 |
250 |
|
鏈條Chain |
|
圓鋼直徑×節距Diameter of round bar×Pitch |
mm |
F18×64 |
F22×86 |
|
單條破斷強度Single breaking strength |
KN |
≥320 |
≥480 |
|
料斗運行速度Bucket speed |
m/s |
1.4 |
1.5 |
|
傳動鏈動轉速Transmission sprocket speed |
rmp |
42.5 |
37.6 |
35.3 |
31.8 |
|
輸送物料最大塊度The largest block of materials |
mm |
35 |
40 |
50 |
60 |
|
注：表中斗容為斗盛水時容積，與實際填充量相近，故輸送量計算時未考填充系數Y,具體選型時應根據物料特性求得Y修正值，以此修正計算機輸送量．
NOTE；Because the bucket capacity in the table is equal to volume of water filled in it and is similar to the filling,in terms of transportation volume,the filling coefficient y is not taken into account.Your selection should be based on the specific characteristics of materials and obtain y revised,and then calculate the volume. |
